Automatic Filter Paper Manufacturing Line for High-Efficiency Filtration With 300mm Pleat Height

1
MOQ
$72000~99000
цена
Automatic Filter Paper Manufacturing Line for High-Efficiency Filtration With 300mm Pleat Height
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Компьютеризированный: Да
Гарантийное время: 1 год
Скорость складывания: 0–60 складок/мин (регулируемая)
Регулируемая ширина: 25–350 мм
Выделить:

automatic filter paper manufacturing line

,

HEPA filter pleating machine 300mm

,

high-efficiency filtration pleating machine
Основная информация
Место происхождения: Аньхой, Китай
Фирменное наименование: TONGCHEN
Сертификация: ISO
Номер модели: ТС-5719
Оплата и доставка Условия
Упаковывая детали: ДЕРЕВЯННАЯ КОРОБКА
Время доставки: 30
Условия оплаты: Т/Т
Поставка способности: 15
Характер продукции
Automatic Filter Paper Manufacturing Line for High-Efficiency Filtration With 300mm Pleat Height
Our production line specializes in manufacturing high-temperature resistant glass fiber folded filter paper, designed for demanding industrial applications. The equipment integrates cutting-edge automation technology to ensure precision folding, uniform adhesive application, and high-speed production of filter cores used in HEPA/ULPA filters, automotive filtration, and thermal insulation systems.

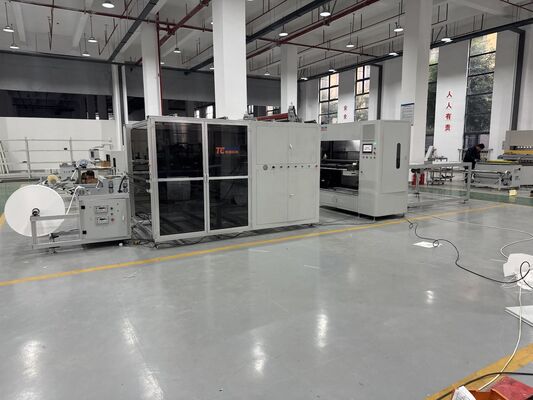

Automatic Filter Paper Manufacturing Line for High-Efficiency Filtration With 300mm Pleat Height 0
Technical Specifications
Pre-cutting Paper Feeding Machine
Parameter Specification
Paper feeding speed 0.5m/min - 10m/min adjustable
Adjustable width 25 - 350mm
Filter paper thickness 1.5mm
Power supply voltage 380V/50Hz
Motor power 0.55kw
Working air pressure 0.6Mpa
Machine weight 250kg
Dimensions 1280×1100×1200mm (L×W×H)
Folding Machine
Parameter Specification
Maximum product width 1000mm
Adjustable folding height 20-300mm
Folding speed 0 - 60 folds/minute (adjustable)
Power supply voltage 380V - 50Hz
Main motor power 4×0.75kw
Ascending motor power 0.4KW
Working air pressure 0.6Mpa
Machine weight 450kg
Dimensions 1800×1500×2250mm (L×W×H)

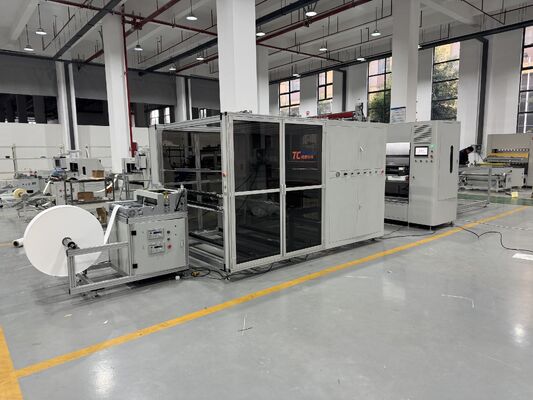

Automatic Filter Paper Manufacturing Line for High-Efficiency Filtration With 300mm Pleat Height 1
Key Advantages
Precision & Flexibility
  • Multi-Layer Compatibility: Handles up to 7 layers of materials (glass fiber, PP, metal, etc.) with automatic height adjustment
  • Dual-Side Processing: Simultaneous cutting and folding reduce production time by 30% compared to traditional methods
Durability & Efficiency
  • High-Temperature Resistance: Processes glass fiber paper stable up to 500°C, ideal for industrial kilns and automotive exhaust systems
  • Energy-Saving Design: Servo motors and PLC reduce power consumption by 15% (total power: 16kW)
Smart Automation
  • Touchscreen Control: Real-time parameter adjustment (speed, fold height, tension) via HMI interface
  • Quick Changeover: Modular rollers and pre-set recipes minimize downtime for multi-product batches

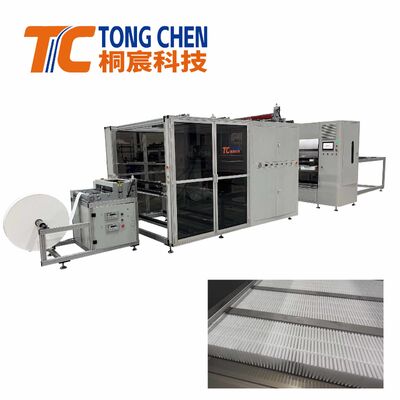

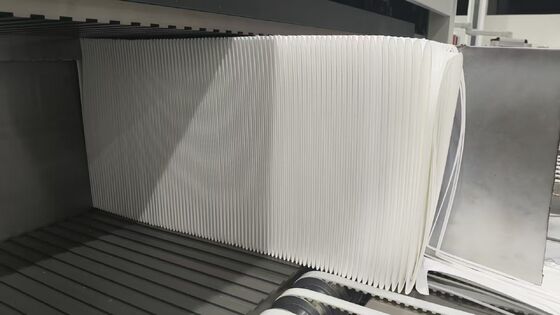

Automatic Filter Paper Manufacturing Line for High-Efficiency Filtration With 300mm Pleat Height 2 Automatic Filter Paper Manufacturing Line for High-Efficiency Filtration With 300mm Pleat Height 3
Packaging & Delivery
Selling Units: Single item
Automatic Filter Paper Manufacturing Line for High-Efficiency Filtration With 300mm Pleat Height 4
Manufacturer Profile
Bengbu Tongchen Automation Technology Equipment Co., Ltd. is located in Bengbu, China—an important transportation hub and industrial base. Our company specializes in the development, design, and production of filter manufacturing equipment, providing advanced, practical, and efficient solutions that meet both domestic trends and international standards.
Product Range
  • Paper folding equipment and rotating machines
  • Diesel engines and large air filter production equipment
  • Partitionless and partitioned filter production equipment
  • Pleating machines and glass fiber strip production lines
Automatic Filter Paper Manufacturing Line for High-Efficiency Filtration With 300mm Pleat Height 5 Automatic Filter Paper Manufacturing Line for High-Efficiency Filtration With 300mm Pleat Height 6 Automatic Filter Paper Manufacturing Line for High-Efficiency Filtration With 300mm Pleat Height 7
