Главная страница /Продукция/Линия по производству воздушных фильтров/Full Automatic AB Two Component Filter Precision Gluing Machine with Gear & Motor Steel Construction 1 Year Warranty

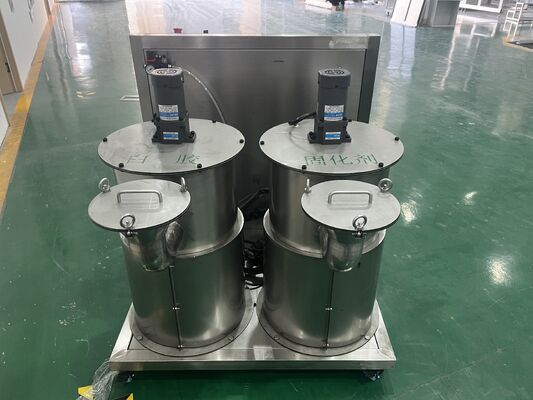

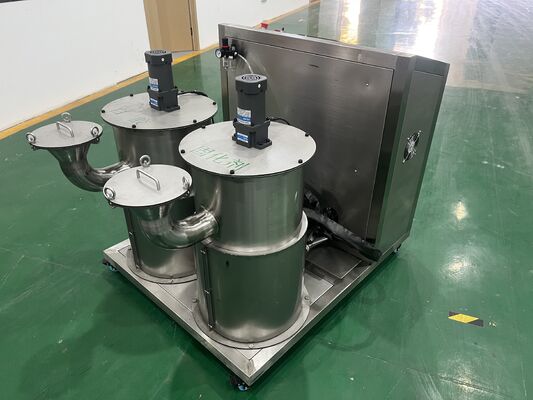

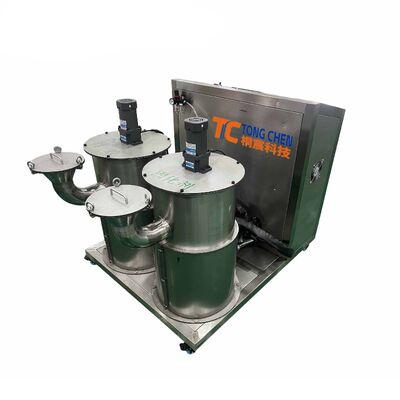

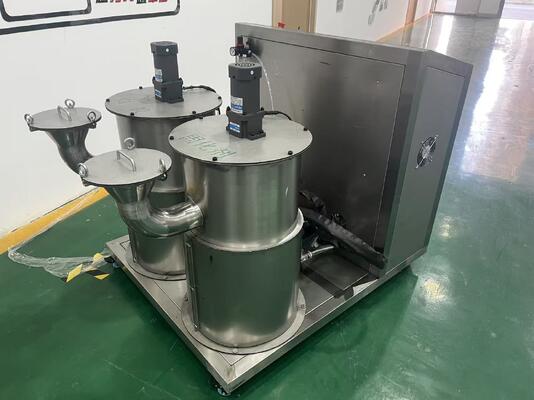

Full Automatic AB Two Component Filter Precision Gluing Machine with Gear & Motor Steel Construction 1 Year Warranty

1
MOQ
$5500~8000
цена
Full Automatic AB Two Component Filter Precision Gluing Machine with Gear & Motor Steel Construction 1 Year Warranty
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Компьютеризированный: Да
Гарантийное время: 1 год
Производственная мощность: 0–10 м/мин
Высота резки: ≤ 300 мм
Основная информация
Место происхождения: Аньхой, Китай
Фирменное наименование: TONGCHEN
Сертификация: ISO
Номер модели: ТС-5569
Оплата и доставка Условия
Упаковывая детали: ДЕРЕВЯННАЯ КОРОБКА
Время доставки: 30
Условия оплаты: Т/Т
Поставка способности: 15
Характер продукции
High Speed Dual-Filter Gluing System Full Automatic AB Two Component Filter Precision Gluing Machine
Fast and reliable high-output production AB Two Component Filter Gluing Machine designed for industrial settings. Built with durable carbon-steel structure and equipped with Mitsubishi PLC and Weintek touchscreen controls, this machine delivers advanced real-time mixing, intelligent monitoring, and automated cleaning capabilities.
Technical Specifications
Structure Carbon steel painted structure
Control System Self-R&D program; Mitsubishi PLC + Weintek touchscreen
Stock Buckets A: 30L carbon steel with heating; B: 30L carbon steel with heating; both with heating function, feeding funnel, inspection glass, full/empty alarms
Mixing Scale Main scale 2:1 (adjustable); overall 10:1-10:10 adjustable; digital input
Measuring Pump A pump: 6CC gear pump; B pump: 3CC gear pump
Glue Supply System Leisa stepper motor/driver + gear pump
Discharging Method Static mixing valve discharge
Air Pressure Requirement 0.5-0.7 MPa
Power Supply 220V / 50Hz
Discharge Speed 1-25 g/s
Discharge Accuracy ±2%
Programs & Functions One-touch cleaning; timed/metered dispensing; anti-solidifying; low-pressure alarm; abnormal fault alarm
Monitoring Features Output counting; timing; operational supervision alarms
Full Automatic AB Two Component Filter Precision Gluing Machine with Gear & Motor Steel Construction 1 Year Warranty 0
Key Features
  • Precise Adjustable Dispensing: Glue output size, dispensing time, and ratio can be adjusted via digital parameters, ensuring accurate dispensing without dripping or leakage.
  • On-Demand Mixing & Maximum Glue Savings: Real-time ratio adjustment enables simultaneous mixing and dispensing, minimizing adhesive waste and improving cost efficiency.
  • Dual-Bucket Storage System: Separate 30L heated A/B buckets prevent premature curing and ensure stable adhesive properties during long-term storage.
  • Wide Ratio Range with Static Mixing: Adjustable mixing ratio from 10:1 to 10:10 with static mixing valves ensures uniform and thorough blending.
  • Comprehensive Alarm System: Includes low air-pressure alarm, material shortage/full alarm, contamination alarm, and abnormal fault warnings.
  • Automatic Liquid Level Detection: Buckets equipped with level switches provide automatic shortage/full alarms and machine auto-stop protection.
  • Smart Monitoring & Productivity Tracking: Features yield counting, individual piece timing, and operational monitoring with alarm alerts.
  • Advanced Auto-clean Functions: Multiple cleaning modes for different adhesive types, plus one-touch auto-cleaning of mixing tubes and valves.
  • Anti-solidifying Program: Prevents adhesive curing inside pipes and valves during temporary stops.
  • Built-in Weighing System: Unique weighing function simplifies ratio adjustments and enhances precision.
  • Digital Speed Control: Electronic dispensing-speed control allows easy fine-tuning of adhesive output volume.
Packaging & Delivery
Selling Units: Single item
Full Automatic AB Two Component Filter Precision Gluing Machine with Gear & Motor Steel Construction 1 Year Warranty 1
Manufacturer Profile
Bengbu Tongchen Automation Technology Equipment Co., Ltd. is located in Bengbu, China—an important transportation hub and industrial base. Our company specializes in the development, design, and production of filter manufacturing equipment, providing advanced, practical, and efficient solutions that meet both domestic trends and international standards.
Product Range
  • Paper folding equipment and rotating machines
  • Diesel engines and large air filter production equipment
  • Partitionless and partitioned filter production equipment
  • Pleating machines and glass fiber strip production lines
Full Automatic AB Two Component Filter Precision Gluing Machine with Gear & Motor Steel Construction 1 Year Warranty 2 Full Automatic AB Two Component Filter Precision Gluing Machine with Gear & Motor Steel Construction 1 Year Warranty 3 Full Automatic AB Two Component Filter Precision Gluing Machine with Gear & Motor Steel Construction 1 Year Warranty 4
